Product card summary: A compact fully hydraulic core rig with 650 m BTW capacity, 240 kN lifting force, a 1.8 m feed stroke, and a 4.5 t operating weight for mobile geological and engineering investigation projects.

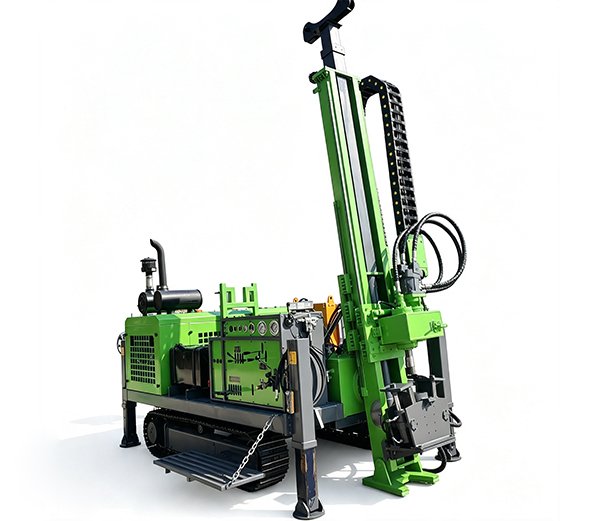

Product detail page introduction: The JY-600 combines a compact crawler chassis with full hydraulic control and wireline coring capability. It is suitable for projects that need a lighter machine, controlled feed pressure, and flexible drilling angles. The power head uses two-speed stepless regulation, while the hydraulic system supports drilling, lifting, and auxiliary movements from a compact platform.
Applications
- Geological exploration
- Engineering site investigation
- BTW/NTW/HTW core drilling
- Inclined and vertical boreholes
- Projects requiring compact transport and crawler mobility
Key features
- BTW drilling capacity: 650 m
- 240 kN lifting force and 120 kN thrusting force
- 1,400 N·m maximum torque and 1,400 rpm maximum speed
- 45-90° drilling angle
- Compact 4.5 t crawler platform
Main Technical Parameters – JY-600 Fully Hydraulic Core Drilling Rig
| Parameter | Value |
| BTW / NTW / HTW / PQ capacity | 650 m / 600 m / 300 m / – |
| Hydraulic pressure | Main pump 32 MPa; auxiliary pump 25 MPa |
| Pump flow | Main pump 95 ml/r; auxiliary pump 80 ml/r |
| Cooling | Air cooling |
| Engine | Yuchai, 4-cylinder, 92 kW, 2,200 rpm |
| Maximum torque / speed | 1,400 N·m / 1,400 rpm |
| Feed stroke / hole diameter | 1.8 m / 95 mm |
| Lifting / thrusting force | 240 kN / 120 kN |
| Wireline length / lifting force | 800 m / 15 kN |
| Wireline speed / diameter | 110 m/min / 6 mm |
| Mast height / drilling angle | 6.1 m / 45-90° |
| Slide stroke | 800 mm |
| Clamp holder | BQ/NQ/HQ/PQ |
| Climbing angle / walking speed | 20° / 2 km/h |
| Dimensions / weight | 4,500 x 1,900 x 2,300 mm / 4.5 t |
