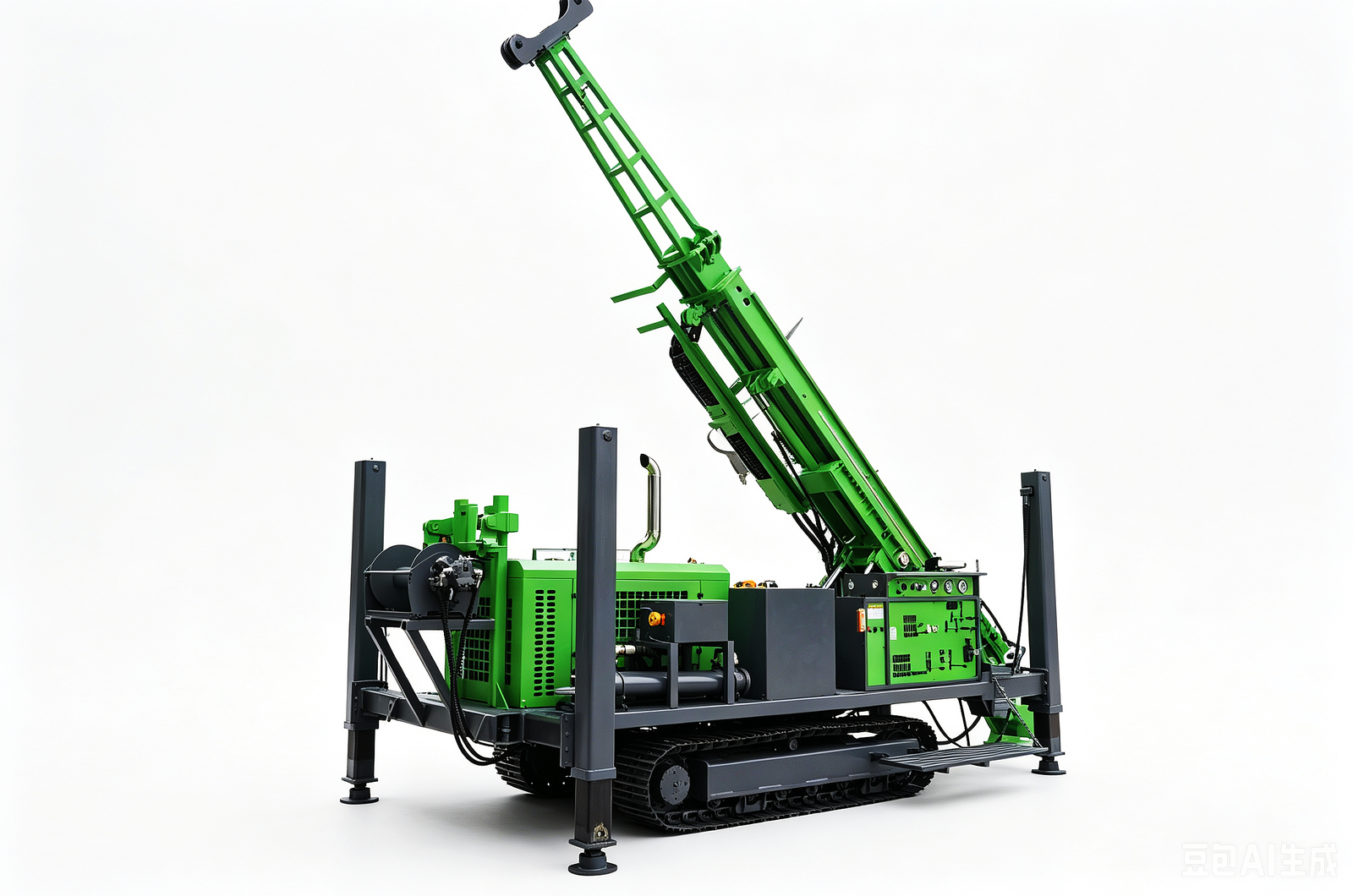

JY-1600
JY-1600

JY-1600

The rig is fully hydraulic driven.

The rig can carry out mechanical two-gear plus stepless speed regulation, and the highest torque can reach 2600N.m.

Axial plunger pump and inclined shaft plunger motor drive.

With power head lateral translation mechanism, the mast can slip as a whole by cylinder lifting and landing, and can be drilled within the range of 45-90°.

Mainly used for the drilling of solid deposits, can also be used for engineering geology, shallow oil, natural gas, groundwater drilling, and can also be used for tunnel ventilation, drainage and dam grouting and other engineering drilling.

Request a Quote
ModelJY-1600
Drilling depthBTW1800m
NTW1600m
HTW1200m
PQ1000m
Hydraulic systemRated pressurePrimary pump:145ml/r.32MPa
Auxiliary pump:80ml/r.25MPa
Cooling methodAir cooling+Water cooling
Diesel engineModelWeichai engine 6-cylinder
Rated power147kw
Rated speed2300rpm
Drilling headMax.torque3500N*m
Max.rotation speed1400rpm
Stroke3.5m
Lifting force400kN
Feeding force200kN
wireline winchRoller capactity1600m
Lifing force31kN
Lifting speed110m/min
Rope diameter8mm
drill mastHeight8.5m
Drilling angle45-90°
Slide stroke1200mm
clamp holderMax.through-hole dia. 146mm
Crawler chassisClimb angle°20°
Max walking speed2km/h
mud pumpBW160
Transportation  sizeL*W*H5600*2200*3050mm
weight10ton
