Product card summary: A heavy-duty multi-method crawler rig with 1,000 m NQ capacity, 12,000 N·m maximum torque, 240 kN lifting capacity, and an 8 t mechanical winch for deeper and more demanding drilling projects.

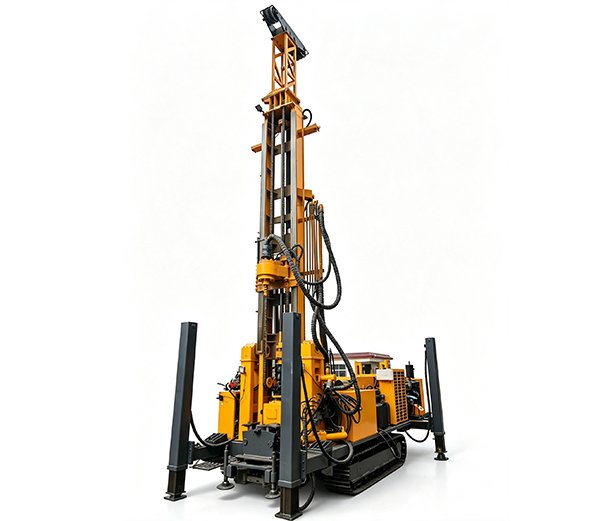

Product detail page introduction: The JDL-500 series is the high-capacity model in the JDL mechanical drilling range. It combines mud rotary and pneumatic DTH hammer drilling with strong lifting and thrusting performance. The machine is intended for projects that require deeper drilling, higher torque, and heavier drill-string handling. Its 3.5 m feed stroke and 8 t winch help improve operational efficiency during rod and tool handling.
Applications
Unstable gravel and pebble formations with casing-following tools
Deep engineering and water well drilling
NQ/HQ/PQ core drilling
Hard rock drilling with pneumatic DTH hammer
Mud rotary drilling in soil and suitable rock layers
Key features
- NQ drilling depth up to 1,000 m
- Maximum torque: 12,000 N·m
- 240 kN lifting and 180 kN thrusting capacities
- 3,500 mm feed stroke
- 92 kW power unit and 8 t mechanical winch
Main Technical Parameters – ORME-500 (JDL-500 / JDL-500X) Mechanical Drilling Rig
| Parameter | JDL-500 | JDL-500X |
| NQ drilling capacity | 1,000 m | 1,000 m |
| HQ drilling capacity | 600 m | 600 m |
| PQ drilling capacity | 300 m | 300 m |
| Drilling angle | 90° | 75-90° |
| Lifting capacity | 240 kN | 240 kN |
| Thrusting capacity | 180 kN | 180 kN |
| Feed stroke | 3,500 mm | 3,500 mm |
| Rotary speed | Forward 43-1,080 rpm; reverse 47-144 rpm | Same |
| Maximum torque | 12,000 N·m | 12,000 N·m |
| Rated power / speed | 92 kW / 2,400 rpm | 92 kW / 2,400 rpm |
| Mechanical winch | 8 t | 8 t |
| Drill pipe / max rod length | NQ/HQ/PQ; <=3 m | NQ/HQ/PQ; <=3 m |
| Walking speed / climbing angle | 0-2 km/h; 25-30° | 0-2 km/h; 25-30° |
| Transport size | 6,300 x 2,000 x 2,650 mm | 6,300 x 2,000 x 2,800 mm |
| Working size | 3,800 x 2,500 x 8,500 mm | 4,200 x 3,600 x 8,800 mm |
| Weight | 11,500 kg | 12,000 kg |
