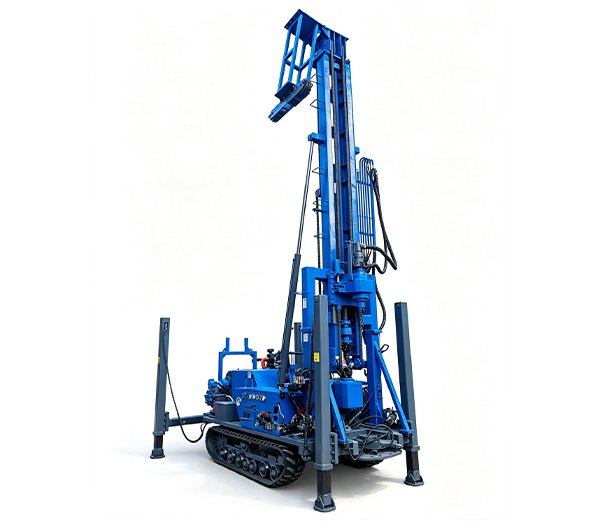

Product card summary: A medium-capacity multi-method drilling rig with 600 m NQ capacity, 10,500 N·m torque, and a 3,500 mm feed stroke. It is configured for mud drilling, DTH hammer drilling, and casing-following work in mixed formations.
Product detail page introduction: The JDL-350 series increases drilling depth, lifting force, and feed stroke while retaining the flexible drilling methods of the JDL platform. Its mechanical top-drive power head delivers high-speed rotation for suitable formations and strong torque for demanding conditions. The 3.5 m stroke reduces frequent rod-handling cycles, while the dual-pump hydraulic system supports efficient lifting and lowering operations.
Applications
- Medium-depth water well and engineering drilling
- NQ/HQ/PQ core drilling
- Mixed soil and rock formations
- Gravel and pebble formations with casing-following tools
- Vertical or angled drilling according to model
Key features
- NQ drilling depth up to 600 m
- Maximum torque: 10,500 N·m
- 120 kN lifting capacity and 85 kN thrusting capacity
- 3,500 mm feed stroke
- Wide forward and reverse speed range
Main Technical Parameters – ORME-350 Mechanical Drilling Rig
| Parameter | JDL-350 | JDL-350X |
| NQ drilling capacity | 600 m | 600 m |
| HQ drilling capacity | 300 m | 300 m |
| PQ drilling capacity | 200 m | 200 m |
| Drilling angle | 90° | 75-90° |
| Lifting capacity | 120 kN | 120 kN |
| Thrusting capacity | 85 kN | 85 kN |
| Feed stroke | 3,500 mm | 3,500 mm |
| Rotary speed | Forward 27-901 rpm; reverse 48-219 rpm | Same |
| Maximum torque | 10,500 N·m | 10,500 N·m |
| Rated power / speed | 58 kW / 2,400 rpm | 65 kW / 2,400 rpm |
| Mechanical winch | 4.5 t | 4.5 t |
| Drill pipe / max rod length | NQ/HQ/PQ; <=3 m | NQ/HQ/PQ; <=3 m |
| Walking speed / climbing angle | 0-2 km/h; 25-30° | 0-2 km/h; 25-30° |
| Transport size | 6,300 x 2,000 x 2,600 mm | 6,300 x 2,000 x 2,600 mm |
| Working size | 3,800 x 2,400 x 7,600 mm | 3,900 x 2,400 x 7,600 mm |
| Weight | 6,500 kg | 7,000 kg |
