Product card summary: A compact crawler drilling rig integrating mud rotary and pneumatic DTH hammer methods. It provides up to 9,800 N·m torque, a wide rotary-speed range, and 350 m NQ drilling capacity for mixed formations and mobile field projects.

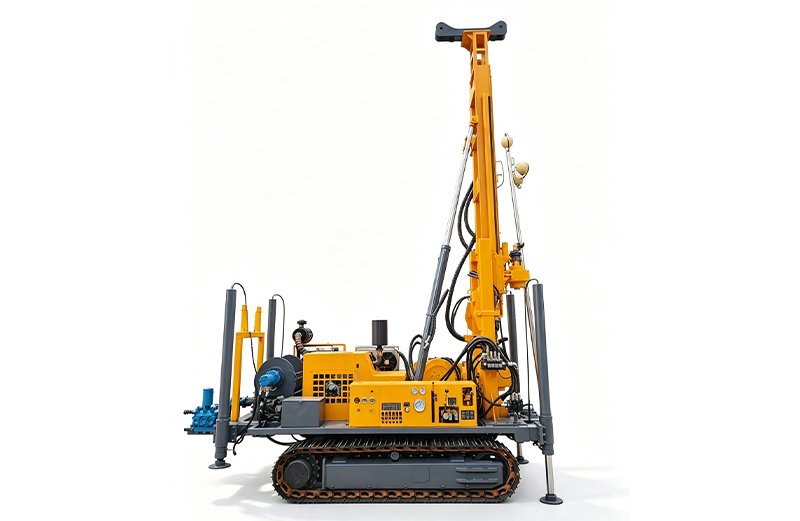

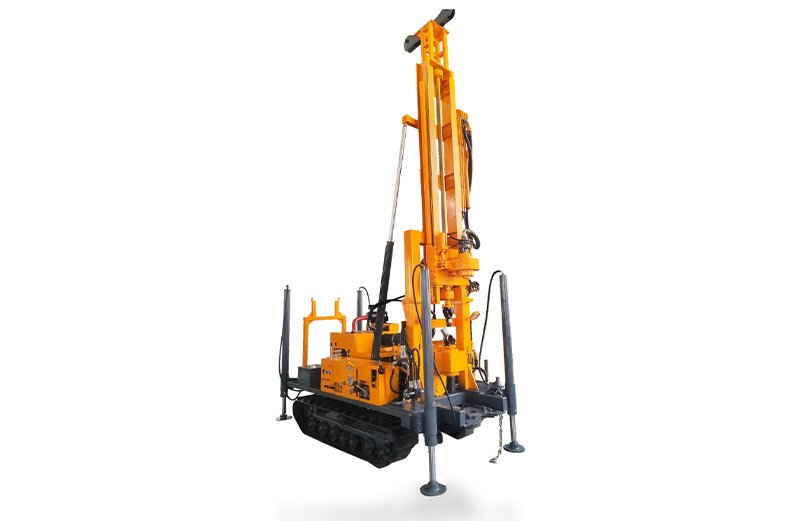

Product detail page introduction: The JDL-280 series is designed for projects that require flexible drilling methods in a compact crawler platform. Its mechanical top-drive power head supports mud rotary drilling in soil and pneumatic DTH hammer drilling in hard rock. In gravel, pebble, or unstable formations, casing-following tools can be used to improve hole formation. The five-speed transmission and dual-pump hydraulic circuit balance drilling efficiency with lower auxiliary power loss.
Applications
- Water well and engineering drilling
- NQ/HQ/PQ core drilling
- Soil, hard rock, gravel, and pebble formations
- Vertical drilling with JDL-280; 75-90° angled drilling with JDL-280X
Key features
- Maximum torque: 9,800 N·m
- Forward rotary speed: 33-1,120 rpm
- 100 kN lifting capacity and 50 kN thrusting capacity
- JDL-280X provides a 2,500 mm feed stroke and adjustable drilling angle
- 4.5 t mechanical winch and crawler mobility
Main Technical Parameters – ORME-280 Mechanical Drilling Rig
| Parameter | JDL-280 | JDL-280X |
| NQ drilling capacity | 350 m | 350 m |
| HQ drilling capacity | 200 m | 200 m |
| PQ drilling capacity | 100 m | 100 m |
| Drilling angle | 90° | 75-90° |
| Lifting capacity | 100 kN | 100 kN |
| Thrusting capacity | 50 kN | 50 kN |
| Feed stroke | 2,300 mm | 2,500 mm |
| Rotary speed | Forward 33-1,120 rpm; reverse 37-180 rpm | Same |
| Maximum torque | 9,800 N·m | 9,800 N·m |
| Rated power / speed | 42 kW / 2,400 rpm | 58 kW / 2,400 rpm |
| Mechanical winch | 4.5 t | 4.5 t |
| Drill pipe / max rod length | NQ/HQ/PQ; <=2 m | NQ/HQ/PQ; <=2 m |
| Walking speed / climbing angle | 0-2 km/h; 25-30° | 0-2 km/h; 25-30° |
| Transport size | 4,600 x 1,900 x 2,540 mm | 5,600 x 1,900 x 2,600 mm |
| Working size | 3,800 x 2,200 x 5,700 mm | 3,800 x 2,300 x 7,000 mm |
| Weight | 3,800 kg | 4,800 kg |
